IP & System Security

IP Security (IPsec) & Secure Communication Protocols

What is IP Security (IPsec)?

IPsec (Internet Protocol Security) is a security framework that protects data at the IP (network) layer.

It provides:

• Confidentiality
• Authentication
• Integrity
• Protection against replay attacks

IPsec secures IP packets, not applications.

IPsec Architecture

Main Components of IPsec Architecture

Component	Description
Authentication Header (AH)	Provides authentication & integrity
Encapsulating Security Payload (ESP)	Provides encryption
Security Association (SA)	Security agreement
Key Management	Key exchange & control
Modes	Transport & Tunnel

IPsec Modes

Mode	Description	Use Case
Transport Mode	Protects payload only	End-to-end
Tunnel Mode	Protects full packet	VPNs

Real-Life Example

• VPN connections
• Corporate network security
• Government communication

Authentication Header (AH)

What is AH?

Authentication Header (AH) ensures:

• Data integrity
• Data origin authentication
• Anti-replay protection

❌ AH does not provide encryption

AH Header Fields

Field	Purpose
Next Header	Type of next protocol
SPI	Security Association ID
Sequence Number	Prevent replay
Authentication Data	Integrity check

Real-Life Example

• Verifying sender identity
• Preventing packet tampering

Encapsulating Security Payload (ESP)

What is ESP?

ESP provides:

• Confidentiality (encryption)
• Integrity
• Authentication (optional)
• Anti-replay protection

ESP Packet Structure

Part	Function
ESP Header	SPI, Sequence number
Encrypted Payload	Actual data
ESP Trailer	Padding
Authentication Data	Integrity

Difference: AH vs ESP

Feature	AH	ESP
Encryption	❌ No	✅ Yes
Authentication	✅ Yes	✅ Yes
Integrity	✅ Yes	✅ Yes
Usage	Limited	Widely used

Combining Security Associations (SA)

What is Security Association (SA)?

A Security Association is a one-way logical connection that defines:

• Encryption algorithm
• Authentication algorithm
• Keys
• Lifetime

SA Characteristics

• Unidirectional
• Identified by SPI
• Exists before communication

SA Bundles (Combination)

Combination	Purpose
AH + ESP	Authentication + Encryption
Transport + Tunnel	Layered security
Multiple ESP	Multi-level protection

Real-Life Example

• Corporate VPN + authentication
• Secure government tunnels

Key Management in IPsec

Why Key Management Is Needed

• Secure key generation
• Automatic key exchange
• Key refresh & deletion

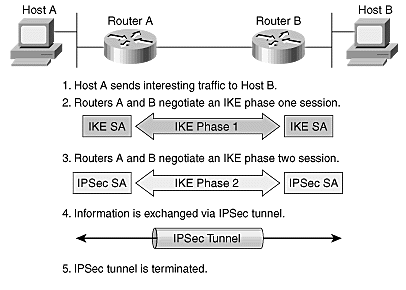

Internet Key Exchange (IKE)

Version	Feature
IKEv1	Basic
IKEv2	Faster & more secure

IKE Functions

• Authentication
• SA establishment
• Key exchange (Diffie-Hellman)

Secure Socket Layer (SSL)

What is SSL?

SSL (Secure Socket Layer) is a security protocol that secures communication between:

• Web browser
• Web server

SSL operates at transport layer.

Services Provided by SSL

Service	Description
Encryption	Secure data transfer
Authentication	Server verification
Integrity	Prevent tampering

SSL Handshake Process

• Client Hello
• Server Certificate
• Key exchange
• Secure session starts

Real-Life Example

• HTTPS websites
• Online banking
• E-commerce portals

Secure Electronic Transaction (SET)

What is SET?

SET (Secure Electronic Transaction) is a protocol designed for secure online credit card payments.

Developed by:

• Visa
• MasterCard

SET Participants

Entity	Role
Cardholder	Customer
Merchant	Seller
Issuer Bank	Customer bank
Acquirer Bank	Merchant bank
Payment Gateway	Transaction processor

SET Features

Feature	Description
Confidentiality	Card details protected
Authentication	Buyer & seller verified
Integrity	No data modification
Non-repudiation	Transaction proof

Why SET Failed Commercially

• Complex infrastructure
• High cost
• SSL became dominant

Comparison: IPsec vs SSL

Feature	IPsec	SSL
Layer	Network	Transport
Transparency	Application-independent	App-specific
Use	VPNs	Web security
Complexity	High	Moderate

Final Quick Revision Table

Topic	Key Point
IPsec	Network layer security
AH	Authentication only
ESP	Encryption + security
SA	Security agreement
Key Management	IKE
SSL	Secure web
SET	Secure payments

System Security

What is System Security?

System security refers to protecting:

• Computers
• Networks
• Data
• Applications

from unauthorized access, misuse, damage, or attacks.

Goal: Confidentiality, Integrity, Availability (CIA Triad)

Introductory Idea of Intrusion

What is an Intrusion?

An intrusion is any unauthorized attempt to:

• Access a system
• Modify data
• Disrupt services

Simple Meaning

Intrusion is like someone entering your house without permission.

Types of Intrusion

Type	Description	Example
External Intrusion	Attack from outside	Hacker breaking into server
Internal Intrusion	Insider misuse	Employee stealing data
Physical Intrusion	Hardware access	USB attack
Logical Intrusion	Software-based	Password cracking

Real-Life Examples

• Unauthorized login
• Website defacement
• Data theft
• Ransomware attack

Intrusion Detection System (IDS)

What is Intrusion Detection?

Intrusion Detection is the process of monitoring system activity to detect suspicious behavior.

IDS detects attacks but does not block them.

Types of IDS

IDS Type	Description
Host-Based IDS (HIDS)	Monitors individual system
Network-Based IDS (NIDS)	Monitors network traffic
Signature-Based IDS	Matches known attack patterns
Anomaly-Based IDS	Detects unusual behavior

IDS Working (Simple)

• Collect system/network data
• Analyze traffic or logs
• Detect abnormal behavior
• Generate alert

Real-Life Example

• Alert when someone tries multiple wrong passwords
• Detection of malware activity

IDS vs IPS

Feature	IDS	IPS
Action	Detect	Detect + Prevent
Response	Alert only	Blocks attack
Placement	Monitoring	Inline

Viruses and Related Threats

What is a Computer Virus?

A computer virus is a malicious program that:

• Attaches itself to files
• Replicates
• Damages system or data

Types of Viruses & Threats

Threat	Description	Example
Virus	Attaches to program	File infection
Worm	Self-replicates	Network spread
Trojan Horse	Disguised as software	Fake antivirus
Ransomware	Encrypts data	WannaCry
Spyware	Steals information	Keylogger
Adware	Displays ads	Pop-up malware

Virus Life Cycle

• Dormant
• Propagation
• Triggering
• Execution

Real-Life Impact

• Data loss
• System crash
• Financial loss
• Privacy breach

Protection Against Viruses

Method	Purpose
Antivirus software	Detect & remove
Regular updates	Patch vulnerabilities
Avoid unknown links	Prevent infection
Backup data	Recovery

Firewalls

What is a Firewall?

A firewall is a security device or software that:

• Monitors network traffic
• Allows or blocks data based on rules

Firewall acts like a security gate.

Types of Firewalls

Firewall Type	Description
Packet Filtering Firewall	Checks packets
Stateful Firewall	Tracks connections
Application Firewall	Filters application data
Proxy Firewall	Acts as middleman
Next-Gen Firewall	Advanced security

Firewall Working (Simple)

• Incoming packet arrives
• Firewall checks rules
• Packet allowed or blocked

Real-Life Example

• Office network protection
• Home Wi-Fi router firewall
• Data center security

Advantages & Limitations

Advantages	Limitations
Prevents unauthorized access	Cannot stop internal attacks
Easy to configure	Cannot stop all malware
Improves security	Needs regular updates

Final Comparison Table

Security Aspect	Role
Intrusion	Unauthorized access
IDS	Detects intrusion
Virus	Malicious software
Firewall	Network protection

Final Quick Revision Table

Topic	Key Point
System Security	Protect systems
Intrusion	Unauthorized access
IDS	Attack detection
Malware	System damage
Firewall	Traffic control

MCA Exam Writing Tips

• Start with definition
• Write types in table form
• Add real-life examples
• Draw simple diagrams
