Introduction to Compiler

Introduction to Compiler

A compiler is a system software that translates a program written in a high-level language (HLL) such as C, C++, or Java into machine-level or intermediate code that a computer can execute.

Key Functions of a Compiler

• Translates source code into target code
• Detects and reports errors
• Optimizes the code for better performance

Compiler vs Interpreter

Feature	Compiler	Interpreter
Translation	Entire program at once	Line-by-line
Speed	Faster execution	Slower
Error reporting	After compilation	Immediate
Example	C, C++	Python, JavaScript

Phases of a Compiler

A compiler works in several sequential phases, each performing a specific task.

Compiler Phases

Phase	Description	Output
Lexical Analysis	Converts characters into tokens	Tokens
Syntax Analysis	Checks grammar using parse trees	Parse Tree
Semantic Analysis	Checks meaning, types, declarations	Annotated Tree
Intermediate Code Generation	Produces intermediate representation	IR Code
Code Optimization	Improves performance	Optimized IR
Code Generation	Produces machine code	Target Code

Passes of a Compiler

A pass refers to one complete traversal of the source code.

Type of Compiler	Description
Single-pass Compiler	Code scanned once (fast, less optimization)
Multi-pass Compiler	Code scanned multiple times (better optimization)

Example:
Most modern compilers like GCC are multi-pass compilers.

Bootstrapping of Compiler

Bootstrapping is the process of developing a compiler using the same language it compiles.

Steps in Bootstrapping

Step	Description
Step 1	Write compiler in an existing language
Step 2	Compile it using old compiler
Step 3	Use newly generated compiler
Step 4	Achieve self-hosting compiler

Advantages

• Improves efficiency
• Language becomes self-sustaining

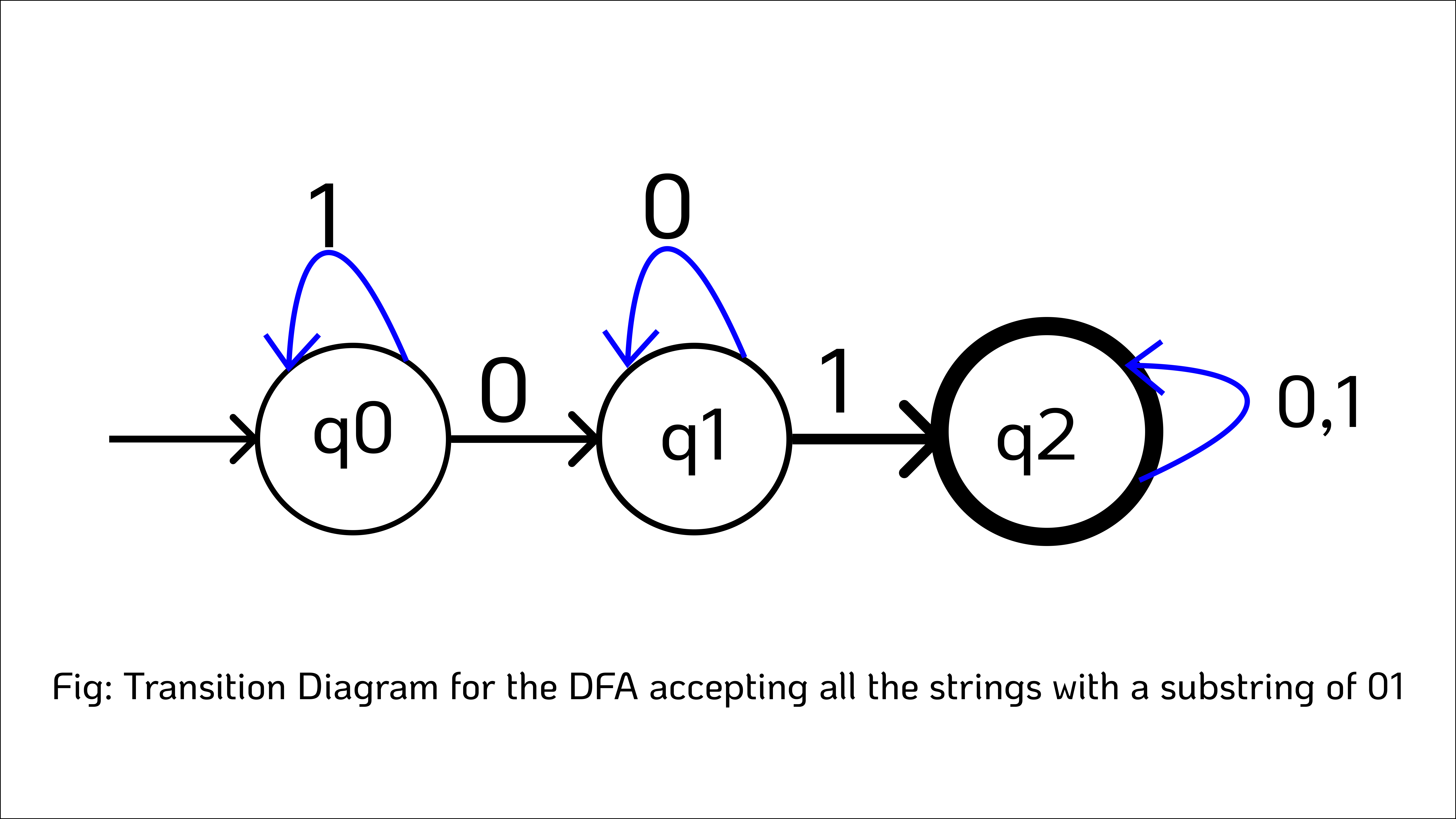

Finite State Machines (FSM)

A Finite State Machine is a mathematical model used to recognize patterns.

Components of FSM

• States
• Input alphabet
• Transition function
• Start state
• Final (accepting) state

FSM in Lexical Analysis

FSMs are used to identify tokens such as:

• Identifiers
• Keywords
• Numbers

Regular Expressions (RE)

A Regular Expression defines a set of strings using specific rules.

Common Regular Expressions

Pattern	Meaning
a*	Zero or more a’s
a+b	One or more a’s followed by b
[a-z]	Lowercase letters
[0-9]+	Numbers

Application in Lexical Analysis

• Tokens are defined using regular expressions
• Converted into NFA → DFA

Optimization of DFA-Based Pattern Matchers

Why DFA Optimization?

• Reduces number of states
• Improves execution speed
• Saves memory

DFA Minimization Steps

Step	Description
Remove unreachable states	Delete unused states
Merge equivalent states	Combine similar behavior states
Create minimized DFA	Efficient automaton

Implementation of Lexical Analyzer

A Lexical Analyzer (Scanner) reads the source code and converts it into tokens.

Functions

• Removes white spaces
• Recognizes lexemes
• Produces tokens
• Reports lexical errors

Token Structure

Field	Description
Token Name	Identifier, Keyword
Lexeme	Actual string
Attribute	Pointer to symbol table

Lexical Analyzer Generator

A Lexical Analyzer Generator automatically generates a scanner from token definitions.

Examples

• LEX
• Flex

Benefits

Feature	Advantage
Automatic generation	Saves time
DFA-based	Fast scanning
Error handling	Built-in

LEX Compiler (LEX Tool)

LEX is a lexical analyzer generator used with YACC.

Structure of LEX Program

Section	Description
Definition	Header files, variables
Rules	Regular expressions + actions
User Code	C functions

Example (Conceptual)

Regex	Token
[a-zA-Z]+	Identifier
[0-9]+	Number

Working of LEX

• User writes LEX specification
• LEX generates lex.yy.c
• Compiled using C compiler
• Produces lexical analyzer

Exam-Oriented Summary (Quick Revision)

Topic	Key Points
Compiler	Translates HLL to machine code
Phases	Lexical → Syntax → Semantic → Code
Passes	Single or Multiple scans
Bootstrapping	Compiler written in its own language
FSM & RE	Used to define tokens
DFA Optimization	Improves speed & memory
Lexical Analyzer	Converts input to tokens
LEX	Tool to generate lexical analyzer

Formal Grammars and Their Application to Syntax Analysis

A formal grammar is a mathematical model used to define the syntax (structure) of a programming language. It specifies how valid statements are formed.

Why Formal Grammars Are Needed

• Define legal program structures
• Help in syntax analysis (parsing)
• Used by compiler design tools (YACC, ANTLR)

Application in Syntax Analysis

• Grammar rules are used to check whether a sequence of tokens follows language rules
• Parser constructs parse trees using grammar productions

Components of a Formal Grammar

A grammar G is defined as:

G = (V, T, P, S)

Symbol	Meaning
V	Set of non-terminals
T	Set of terminals
P	Production rules
S	Start symbol

BNF (Backus–Naur Form) Notation

BNF is a formal notation used to express grammar rules of programming languages.

Structure of BNF Rule

<non-terminal> ::= expression

Example (Arithmetic Expression)

<expr> ::= <expr> + <term> | <term>
<term> ::= <term> * <factor> | <factor>
<factor> ::= ( <expr> ) | id

BNF Symbols

Symbol	Meaning
::=	Definition
`	`
< >	Non-terminal

Advantages of BNF

• Simple and precise
• Language independent
• Used in language specifications

Ambiguity in Grammar

A grammar is said to be ambiguous if one string can have more than one parse tree.

Example of Ambiguous Grammar

E → E + E | E * E | id

Expression: id + id * id

• Can be evaluated in two different ways
• Leads to confusion in parsing

Problems Caused by Ambiguity

• Incorrect interpretation
• Compiler confusion
• Logical errors

Removing Ambiguity

• Rewrite grammar with operator precedence
• Use separate non-terminals

Context-Free Grammars (CFG)

A Context-Free Grammar is a grammar where each production has a single non-terminal on the left side.

General Form

A → α

Where:

• A is a non-terminal
• α is a string of terminals and non-terminals

Why CFG Is Important

• Used to define syntax of programming languages
• Suitable for nested structures
• Used by most parsers

Derivation in CFG

Derivation shows how a string is generated from the start symbol.

Types of Derivation

Type	Description
Leftmost Derivation	Leftmost non-terminal replaced first
Rightmost Derivation	Rightmost non-terminal replaced first

Example

Grammar:

S → aSb | ab

Leftmost Derivation:

S ⇒ aSb ⇒ aab b

Parse Trees

A parse tree is a hierarchical representation of derivation.

Features

• Root = Start symbol
• Internal nodes = Non-terminals
• Leaf nodes = Terminals

Importance

• Visual understanding of syntax
• Used in syntax-directed translation

Capabilities of Context-Free Grammars

CFGs are powerful enough to describe most programming constructs.

CFG Can Represent

Feature	Example
Nested expressions	(a+b)*(c+d)
Conditional statements	if–else
Loop structures	while, for
Arithmetic expressions	precedence & associativity

CFG Limitations

• Cannot check variable declaration before use
• Cannot enforce type matching

YACC (Yet Another Compiler Compiler)

YACC is a parser generator that works with LEX.

Purpose

• Generates syntax analyzer
• Uses CFG rules as input

Structure of YACC Program

Section	Description
Declarations	Tokens, precedence
Grammar Rules	CFG productions
User Code	Supporting C code

Working of YACC

• Grammar rules written in YACC
• Generates y.tab.c
• Compiled with LEX output
• Produces parser

Syntax Specification of Programming Languages

Programming languages use CFG-based syntax specifications.

Example (If Statement)

if_stmt → if ( expr ) stmt

Why CFG for Syntax Specification

• Clear structure
• Machine readable
• Standardized

Difference Between Lexical & Syntax Analysis

Feature	Lexical Analysis	Syntax Analysis
Input	Characters	Tokens
Output	Tokens	Parse tree
Tool	LEX	YACC
Grammar	Regular Expressions	CFG

Exam-Oriented Summary Table

Topic	Key Points
Formal Grammar	Defines language structure
BNF	Grammar notation
Ambiguity	Multiple parse trees
CFG	Core of syntax analysis
Derivation	String generation
Parse Tree	Hierarchical syntax
YACC	Parser generator
