Data Warehouse Process
The Data Warehouse Process refers to the complete lifecycle involved in planning, designing, building, managing, and maintaining a data warehouse so that it effectively supports business decision-making.
In simple words: It is how a data warehouse is planned, built, operated, and supported.
Warehousing Strategy
A Warehousing Strategy defines why, what, and how data will be stored in the warehouse.
Objectives of Warehousing Strategy
- Improve decision-making
- Provide a single version of truth
- Reduce reporting time
- Support business growth
Types of Warehousing Strategies
| Strategy | Explanation |
|---|
| Enterprise Data Warehouse (EDW) | Centralized warehouse for entire organization |
| Data Mart Strategy | Department-specific warehouses |
| Top-Down Approach | Build EDW first, then data marts |
| Bottom-Up Approach | Build data marts first, then integrate |
| Hybrid Approach | Combination of top-down and bottom-up |
For exams:
- Top-down = costly but integrated
- Bottom-up = faster and cheaper
Warehouse Management and Support Processes
Once the warehouse is built, it must be managed and supported continuously.
Key Warehouse Management Processes
| Process | Purpose |
|---|
| Data Loading | Regular ETL data refresh |
| Metadata Management | Maintain data definitions |
| Performance Monitoring | Ensure fast query response |
| Security Management | Control user access |
| Backup & Recovery | Prevent data loss |
| Error Handling | Fix data inconsistencies |
Support Processes
| Support Process | Description |
|---|
| User Training | Teach users how to use tools |
| Query Support | Assist in complex queries |
| Change Management | Handle schema or requirement changes |
| System Auditing | Track usage and performance |
Warehouse Planning and Implementation
This is the most important practical section for MCA students.
Steps in Warehouse Planning & Implementation
Step 1: Business Requirement Analysis
- Identify business goals
- Decide KPIs and reports
Step 2: Technical Assessment
- Data source analysis
- Hardware and software selection
Step 3: Data Modeling
- Choose schema (Star/Snowflake)
- Design fact and dimension tables
Step 4: ETL Design
- Extract data
- Clean and transform
- Load warehouse
Step 5: Testing
- Data accuracy testing
- Performance testing
Step 6: Deployment & Maintenance
- Release for users
- Continuous monitoring
Planning Challenges
| Challenge | Reason |
|---|
| Data quality | Inconsistent source data |
| Cost | Hardware and tools are expensive |
| Scalability | Growing data volume |
| User adoption | Lack of training |
Hardware for Data Warehousing
A data warehouse handles huge volumes of data, so powerful hardware is required.
Hardware Components
| Component | Role |
|---|
| CPU | Handles query processing |
| Memory (RAM) | Faster data access |
| Storage | Stores historical data |
| Network | Connects data sources |
| Backup Devices | Data protection |
Hardware Architecture Types
| Architecture | Description |
|---|
| SMP (Shared Memory) | Multiple CPUs share memory |

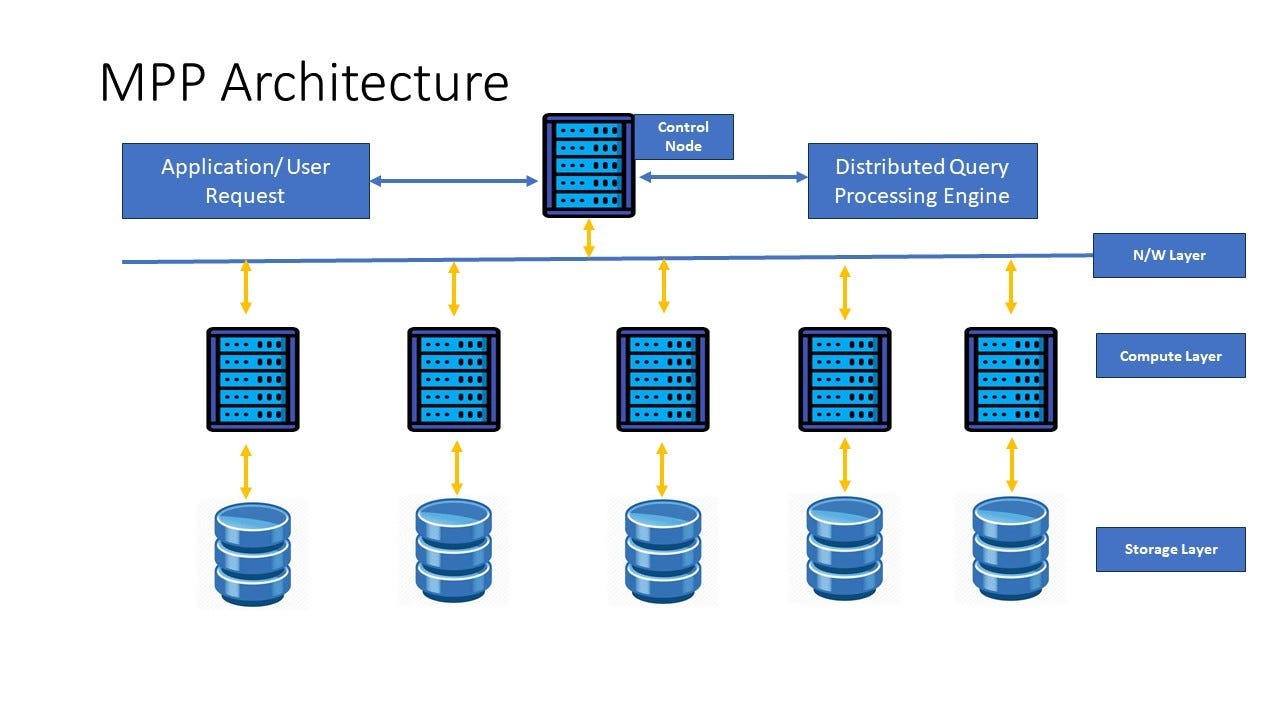

| MPP (Shared Nothing) | Each processor has own memory |
| NUMA | Hybrid memory architecture |
MPP architecture is most popular for large warehouses.
Operating Systems for Data Warehousing
The Operating System (OS) controls how hardware resources are used.
OS Requirements for Data Warehousing
| Requirement | Reason |
|---|
| Scalability | Handle growing data |
| Reliability | 24×7 availability |
| Parallel Processing | Faster query execution |
| Security | Protect sensitive data |
Common Operating Systems Used
| OS | Usage |
|---|
| Linux | Most widely used (cost-effective) |
| UNIX | High-end enterprise systems |
| Windows Server | Small to medium warehouses |
Combined Summary Table (Exam Revision)
| Topic | Key Points |
|---|
| Warehousing Strategy | Defines approach & scope |
| Management Processes | Monitoring, security, metadata |
| Support Processes | User training, change management |
| Planning & Implementation | Step-by-step lifecycle |
| Hardware | High-performance systems |
| Operating Systems | Linux & UNIX preferred |
Exam-Oriented Conclusion
- Data Warehouse process covers strategy to maintenance
- Proper planning ensures success
- Management and support processes keep system reliable
- Hardware and OS selection directly affect performance
- Parallel processing is critical for large datasets
Client / Server Computing Model & Data Warehousing
The Client/Server Computing Model is the foundation on which most data warehouse systems are built.
What is Client/Server Computing?
- Client: Requests data (user interface, reports, dashboards)
- Server: Processes requests and manages data
Role in Data Warehousing
- Clients run OLAP tools
- Servers store and process warehouse data
- Enables centralized storage and distributed access
Types of Client/Server Architecture
| Type | Description |
|---|
| 2-Tier | Client ↔ Database Server |
| 3-Tier | Client ↔ Application Server ↔ Database |
| N-Tier | Multiple layers for scalability |
Data warehouses mostly use 3-tier architecture.
Parallel Processors & Cluster Systems
Large data warehouses require high-speed processing, achieved using parallel processors and cluster systems.
Parallel Processing (Simple Explanation)
- Tasks are divided into smaller parts
- Multiple processors work simultaneously
- Results are combined
Types of Parallel Architectures
| Architecture | Description |
|---|
| Shared Memory | All CPUs share same memory |
| Shared Disk | Each CPU has private memory but common disk |
| Shared Nothing | Each CPU has own memory & disk |
Shared Nothing (MPP) is best for large warehouses.
Cluster Systems
- Group of independent computers
- Work together as a single system
- High availability and fault tolerance
Distributed DBMS Implementations
A Distributed DBMS (DDBMS) stores data across multiple locations but appears as a single database to users.
Key Features
| Feature | Explanation |
|---|
| Data Distribution | Data stored at multiple sites |
| Transparency | User sees one database |
| Scalability | Easy to expand |
| Fault Tolerance | Failure at one site doesn’t stop system |
Implementation Techniques
| Technique | Description |
|---|
| Fragmentation | Data split into parts |
| Replication | Copies of data at multiple sites |
| Allocation | Placement of data fragments |
Warehousing Software
Warehousing Software refers to tools used to build, manage, and analyze data warehouses.
Categories of Warehousing Software
| Software Type | Purpose |
|---|
| ETL Tools | Extract, transform, load data |
| Database Software | Store warehouse data |
| OLAP Tools | Multidimensional analysis |
| Reporting Tools | Reports and dashboards |
| Metadata Tools | Manage data definitions |
Popular Examples (For Theory)
- ETL: Informatica, Talend
- DB: Oracle, SQL Server, Teradata
- OLAP: Cognos, SSAS
Warehouse Schema Design
Warehouse Schema Design defines how data is structured inside the warehouse.
Basic Components
| Component | Meaning |
|---|
| Fact Table | Stores numeric measures |
| Dimension Table | Stores descriptive data |
| Measure | Sales, profit, quantity |

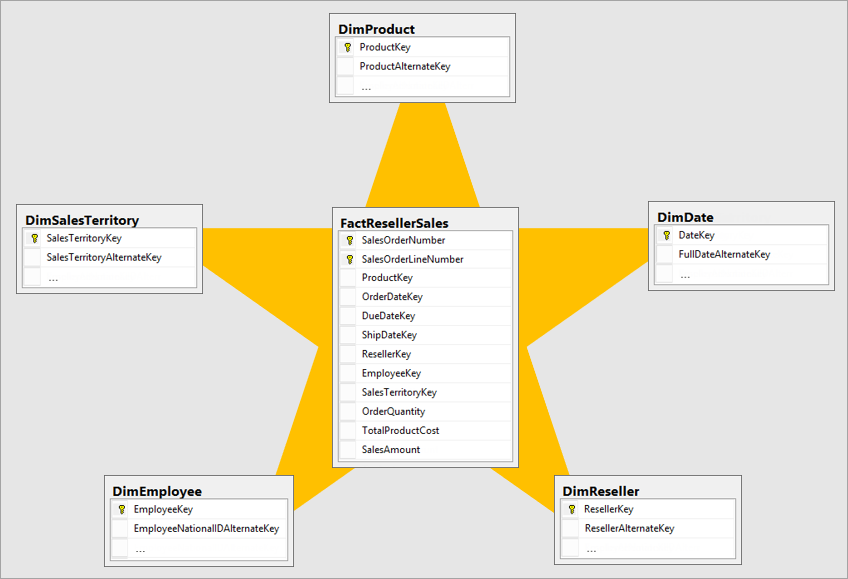

Star Schema
| Feature | Description |
|---|
| Structure | One fact table, many dimensions |
| Complexity | Simple |
| Performance | Fast queries |
| Usage | Most common |
Snowflake Schema
| Feature | Description |
|---|
| Structure | Normalized dimensions |
| Complexity | High |
| Storage | Less redundancy |
| Performance | Slower than star |
Fact Constellation (Galaxy Schema)
| Feature | Description |
|---|
| Fact Tables | Multiple |
| Dimensions | Shared |
| Complexity | Very high |
| Usage | Enterprise-level warehouses |
Comparative Summary (Exam-Ready Table)
| Topic | Key Idea |
|---|
| Client/Server Model | Centralized server, distributed clients |
| Parallel Processing | Faster query execution |
| Cluster Systems | High availability |
| Distributed DBMS | Data across multiple locations |
| Warehousing Software | ETL, OLAP, reporting |
| Schema Design | Star, Snowflake, Galaxy |
Exam-Friendly Conclusion
- Client/Server model supports scalable warehousing
- Parallel processors improve performance
- Cluster systems ensure reliability
- Distributed DBMS improves availability
- Proper schema design is critical for speed and analysis
